UV VIS Spectrophotometers
Leading Manufacturers and Wholesaler of Microprocessor Double Beam UV Vis Spectrophotometer SI-334, Microprocessor Single Beam UV Vis Spectrophotometer SI-329 and Microprocessor Single Beam UV Vis Spectrophotometer SI-327 from Zirakpur.
| Business Type | Manufacturer, Supplier |
| Click Here To View Catalog |  View |
| Country of Origin | India |
| Display Type | Digital |
| Voltage | 220 V |
| Certification | CE Certified |
| Application | Industrial |
| Driven Type | Electric |
Applications:
- Medicine/Pharmaceutical Industry
- Environmental Monitoring
- Commodity Inspe ction
- Food Inspection
- Agricultural Chemistry
- Teaching in Colleges & Universities
- Metallurgy
- Geology
- Machine Manufacturing
- Petrochemical Industries
- Water and Waste Water Labs
- Food and Beverage Labs
| Business Type | Manufacturer, Supplier |
| Weight | 20kg |
| Light Source | Imported Deuterium And Tungsten Lamp |
| Noise | +/-0.001A |
| Stability | +/-0.0002A/h@500nm |
| Stray Light | 0.15% T |
| Spectral Bandwidth | 1nm |
| Wavelength Accuracy | 2nm |
| Wavelength Range | 190-1100 nm |
| Optical System | Single-Beam Grating 1200 lines/mm CT Grating Monochromator |
| Display | 128x64 LCD |
| Wavelength Repeatability | Less than=0.2nm |
| Photometric accuracy | 0.5%T |
| Photometric repeatability | 0.2% T |
| Baseline Flatness | +/-0.002A |
| Wavelength Setting | Auto |
| Work Pattern | TAC |
| Size | 700x580x340mm |
Features
- Unique optical system, 1200 lines/mm grating and imported receiver to ensure its sound performance
- The instruments is supply with PC software expands the capabilities of the instrument includes.
- Photometric analysis, Quantitative analysis, Spectral scanning, Kinetics, DNA/protein analysis, Multi-wavelength test etc.
- Adopts 51 microcomputer system and store 200 test data and 100 standard curves
- Plug type deuterium lamp and tungsten lamp transfer lamps without optics debugging.
Application
- Medicine/Pharmaceutical Industry
- Environmental Monitoring
- Commodity Inspection, Food Inspection
- Agricultural Chemistry, Teaching in Colleges
- Universities, Metallurgy , Geology
- Machine Manufacturing, Petrochemical Industry
- Water and Waste Water Labs
- Food and Beverage Labs
Salient features
- The wavelength Range 190 - 1100
- Wavelength selection by numeric keypad.
- Spectral Bandwidth 2nm, Can save 50 groups of curve equation.
- Auto setting wavelength, auto zero and blank
- Tungsten lamp & Deuterium lamp can be turned on/off individually to extend shelf life.
Standard Configuration
- Main Set, USB Cable-1,
- Power Cable-1
- Square Glass Cell- 4 Nos,
- Quartz Cell -2Nos. (1cm)
- Software CD - 1, Softwry Key - 1,
- Operating Manual Software
- Dust Cover & Operating Manual
| Business Type | Manufacturer, Supplier |
| Weight | 12 Kg (Approx.) |
| Detector | CT Grating Monochromator |
| Stability | + 0.004 A/h @500nm |
| Stray Light | Less Then 0.3% @ 220 Nm |
| Spectral Bandwidth | 2 Nm |

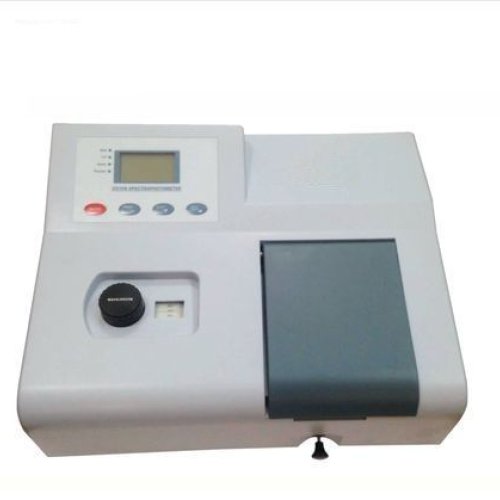

| Model | SI-327 |
| Wavelength Accuracy | + 2nm |
| Wavelength | 195 to 1020nm |
| Wavelength Repeatability | + 1 nm |
| Resolution | 0.1 nm |
| Photometric Accuracy | +0.5%T |
| Photometric Repeatability | 0.2%T |
| Data Readout | LCD display |
| Display Area | 0 – 200%T, -0.3 -3A |
| Key Board | 4 Keys, Soft touch membrane type |
| Work Pattern | T.A.C |
| Zero Setting | Automatic |
| Sample Holder | 4 position adjustable sample holder |
| Power | 230V + 10%, 50 Hz. AC |
| Dimensions | 420 x 350 x 240 mm (L X W X H) Approx. |
UV-visible spectrophotometer, an analytical instrument commonly used in physico-chemical laboratories to make quantitative and qualitative analysis of specimen materials in the ultraviolet, visible spectral range finds much scope for its service in such fields as medicine, clinical examination, biochemistry, petro-chemical industry. Bio technology, Environmental protection and quality control. The technique has enjoyed a molecular biology and the need to quantify DNA and proteins. Here, the simplicity of use, the non-destructive nature of the sampling and the cost effectiveness of the measurement has proved very beneficial in the modern laboratory.
Salient Features
- Cover 195 to 1020nm
- 4 Position Cuvette Holder
- High wavelength Precision
- Highly Accurate & Stable
