Digital Flame Photometers

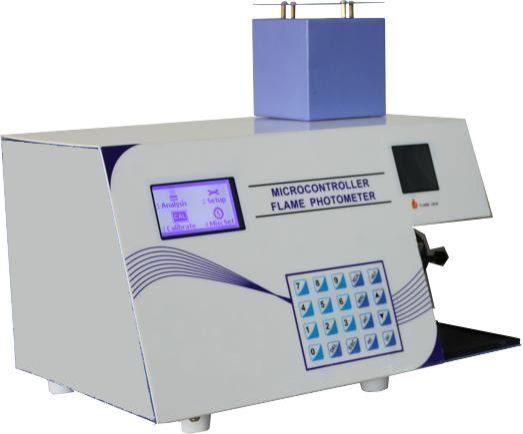

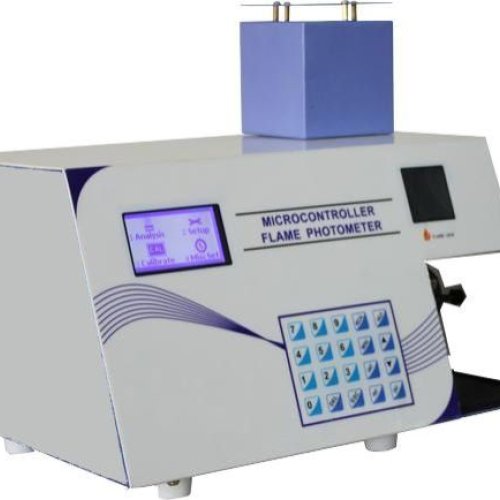

Leading Manufacturers and Wholesaler of Microprocessor Flame Photometer SI-209, Digital Duel Display Flame Photometer SI-206 and Digital Single Display Flame Photometer SI-203 from Zirakpur.
| Business Type | Manufacturer, Supplier |
| Country of Origin | India |
| Warranty | 1 Year |
| Application | Industrial Use |
| Automatic Grade | Automatic |
| Color | Grey |
| Driven Type | Electric |
The sample solution is aspirated through an auto-miser. Sample, Air and the fuel are mixed in the mixing chamber which is then sprayed as a very fine mist into the flame. The color of the flame is changed depending upon the concentration of elements present. Radiations from the flame pass through the sensing system and specific narrow band interference filter which permits only the characteristic radiation to pass to the photo-detector. The output of the photo-detector is then processed by the microcontroller and the final results are displayed on graphical LCD display.
In both models 5-Point calibration facility and non-linearity correction is provided through automatic curve fitting software. Facility has been provided for re-standardization with a single standard, thereby, eliminating the need of the multiple standards once a calibration has been performed.
Salient Features:
- Microprocessor Based with Printer Interface
- Auto Gas Cutoff
- Auto Flame Failure Detection
- Four Measurements in Single Aspiration
- Setup Storage Facility
- Sample Data Storage Facility
- Curve Calibration Programmability Using Maximum of 5 Standards
- Multiple Calibration Curve Saving Facility
- Data Processing Through Curve Fitting Techniques, Least Square, Quadratic
- Online Help Key
- Direct Results in ppm and meq
- Useful for Medical & Soil Testing
| Business Type | Manufacturer, Supplier |
| Model No | SI-206 |
| Range | Na : 0-100 ppm, K : 0-100 ppm, Ca : 15-100 ppm (Optional) Li : 10-100 ppm (Optional) |
| Sensitivity | Na : 5 ppm, K : 5 ppm, Ca: 10 ppm (Optional),Li: 10 ppm (Optional) |
| Readout | 2½ Digit Bright Red LED duel display |
| Accuracy | ± 2 % up to 40 ppm ± 5 % above 40 ppm |
| Ignition System | With external igniter |
| Measurement System | Measures Two element at a time |
| Repetability | ± 2 Counts |
| Detector | Silicon Photodiode |
| Filters | Narrow band interference glass filters |
| Nebulizer | Black bakelite, axial flow type |
| Flame System | Lpg and Dry Oil Free Air Warm Up Time 10 Minutes |
| Power | 230 V± 10%,50HZ |
| Dimensions | 355W X 255H X 225mm (Approx.) |
| Weight | 5 Kg. (Approx.) |
| Air Supply | By oil free mini compressor unit with pressure regulator |
| Combustion | GAS LPG controlled by precision regulator |
We are catering DIGITAL FLAME PHOTOMETER to our clients based globally. These are available at optimum prices with customized solutions as per clients’ specifications. Owing to the quality standards, these are highly demanded and are at par with international quality standards.
Salient Features
- Dual Channel
- Stainless steel round burner
- Concentric Non-Corrosive
- Nebulizer
- Narrow Band interference Filters
- Narrow Band interference Filters
Accessories
- Instrument with Na &
- K Filters
- Sample Holders
- Instruction Manual
- Air and Gas Tubing
- Along with End Clamps
- Chimney
- Capability Tubes
- Air Compressor
| Business Type | Manufacturer, Supplier |
| Model No | SI-203 |
| Range | 0-100 ppm, K : 0-100 ppm, Ca : 15-100 ppm (Optional) Li : 10-100 ppm (Optional) |
| Sensitivity | Na : 5 ppm, K : 5 ppm, Ca: 10 ppm (Optional),Li: 10 ppm (Optional) READOUT 2½ Digit Bright Red LE |
| Accuracy | ± 2 % up to 40 ppm ± 5 % above 40 ppm |
| Ignition System | With external igniter |
| Measurement System | Measures One element at a time |
| Repetability | ± 2 Counts |
| Detector | Silicon Photodiode |
| Filters | Narrow band interference glass filters |
| Nebulizer | Black bakelite, axial flow type |
| Flame System | LPG and dry oil free air |
| Warm Up Time | 10 Minutes |
| Power | 230 V± 10%,50HZ |
| Dimensions | 355W X 255H X 225mm (Approx.) |
| Weight | 5 Kg. (Approx.) |
We are catering DIGITAL FLAME PHOTOMETER to our clients based globally. These are available at optimum prices with customized solutions as per clients’ specifications. Owing to the quality standards, these are highly demanded and are at par with international quality standards.
Salient Features
- Single Channel
- Stainless steel round burner
- Concentric Non-Corrosive
- Nebulizer
- Narrow Band interference Filters
- Air Compressor
Accessories
- Instrument with Na &
- K Filters
- Sample Holders
- Instruction Manual
- Air and Gas Tubing
- Along with End Clamps
- Chimney
- Capability Tubes
- Air Compressor
